Lesson 2

Lesson 2: Analyzing Rational Functions

Focus

When preparing goods for transport, the cost of packaging is one factor to consider. Typically, packaging in bulk is cheaper. Can you think of some reasons for this?

One measure of efficiency of packaging is the volume-to-surface-area ratio of the container. This ratio increases as the size of the container increases. This means that if you double the volume, you will require less than double the amount of packaging if the package shape remains the same. This is one reason packaging in bulk is cheaper. While modelling the volume-to-surface-area ratio, you will see that more than one type of “break” is possible in the graph of a function.

In this lesson you will explore how some rational functions can have discontinuities that are not asymptotes.

Lesson Outcomes

At the end of this lesson you will be able to

• describe what a discontinuity is
• explain the difference between an asymptote and a point of discontinuity and determine when each will occur

Lesson Question

You will investigate the following question:

• How can you determine when a discontinuity will occur in a function and what kind of discontinuity it will be?

Assessment

Your assessment may be based on a combination of the following tasks:

• completion of the Lesson 2 Assignment (Download the Lesson 2 Assignment and save it in your course folder now.)
• course folder submissions from Try This and Share activities
• additions to Glossary Terms

Discover

Try This 1

Suppose you are working with a vegetable cannery to design aluminum can dimensions. You have been asked to work specifically with the volume-to-surface-area ratio. The company has asked that all cans have a height of 11.5 cm so that the cans will fit on shelves properly.

1.
   1. Give a function, V(r), that gives the volume as a function of the radius of the can.
   2. Give a function, S(r), that gives the surface area as a function of the radius.
   3. The volume-to-surface-area ratio as a function of height can be written as . Expand this expression using the functions from question parts a. and b.

   4. Simplify the function R(r) by cancelling common factors, and determine any non-permissible values for R(r).
2.
   1. Describe what happens to the volume-to-surface-area ratio as r increases and the height is kept at 11.5 cm.
   2. Explain how much the volume-to-surface-area ratio should influence the can dimensions selected.
3.
   1. r = 0 and r = −11.5 are non-permissible values for R(r). Ignoring physical limitations, explain where each of these values comes from.
   2. Complete a table like the following for the values near the two non-permissible values:



      r	R(r)	r	R(r)
      −0.1		−11.6
      −0.01		−11.51
      −0.001		−11.501
      0	indeterminate	−11.5	undefined
      0.001		−11.499
      0.01		−11.49
      0.1		−11.4

   3. Explain what happens to the value of R(r) as r approaches each non-permissible value.
   4. Calculate the value of the numerator and denominator when R(r) is indeterminate and when R(r) is undefined. Use this information to predict the difference between an indeterminate and an undefined value.
4.
   1. Graph  and  using technology.
   2. Can you tell where the undefined value at r = −11.5 occurs just by looking at either graph?
   3. Can you tell where the indeterminate value at r = 0 occurs just by looking at either graph?
   4. What value does  give for r = 0? What restriction should be placed on ?


Save your responses in your course folder.

Explore

In Try This 1 you saw that the rational function  contained two non-permissible values at r = 0 and r = −11.5. Both of these values created a discontinuity in the graph of the function; that is, you couldn’t draw the graph without lifting your pencil. One of these discontinuities showed up as an asymptote. You have seen these many times before. The other discontinuity showed up as a “missing” point on the function. This missing point is called a point of discontinuity or a hole and is usually represented with an open circle on the graph.

If the function is simplified to , the restriction r ≠ 0 needs to be placed on the function to maintain the original restrictions.

The graph of this rational function does not appear to have any
points of discontinuity; however, by checking the table of values,
you can see that −2 is a point of discontinuity.

Although some graphing software will show where points of discontinuity occur when a rational function is graphed, many graphing calculators do not. It is up to the user to determine where these points occur and to interpret the graph correctly.



If a graphing calculator shows a table of values for a function, this can sometimes be used to determine where a point of discontinuity is. Typically the y-value corresponding to the non-permissible x-value will show some type of error message.

In Try This 2 you will further explore when asymptotes occur and when points of discontinuity occur.

Try This 2

Consider the following two rational functions:

1.
   1. Determine the non-permissible value for f(x) and g(x).
   2. Graph f(x) and g(x) using technology and make a sketch of the graphs.
   3. Use your graphs to complete a table like the following.



      	f(x)	g(x)
      Non-permissible Value
      Description of Graph at Non-permissible Value
      Description of Graph Near Non-permissible Value

2. Try to explain why a point of discontinuity occurs in f(x) and an asymptote occurs in g(x).
3.
   1. Factor the numerator and denominator for both functions using common factors.
   2. Cancel any factors that appear in both the numerator and denominator.
4. Revise your explanation for question 2, if necessary.

  Save your responses in your course folder.

Share 1

With a partner or group, compare, share, and discuss your responses to Try This 2. Based on your discussion, develop a general statement describing how to determine if a non-permissible value is indeterminate or undefined. How does this relate to factors in the numerator and denominator?1

If required, save a record of your discussion in your course folder.

1 Source: Pre-Calculus 12. Whitby, ON: McGraw-Hill Ryerson, 2011. Reproduced with permission.

The main difference between the two functions in Try This 2 is that the non-permissible value for one produced a point of discontinuity and the other produced an asymptote.

	When a factor that occurs in both the numerator and denominator is equal to 0	When a factor that occurs only in the denominator is equal to 0
Function
Non-permissible Values	x = −1	x ≠ −1
Type of Non-permissible Value	indeterminate	undefined
Appearance on Graph	hole or point of discontinuity	asymptote
Factored Form
Common Factors	Yes, a factor in the numerator and in the denominator causes a hole.	No, a factor only in the denominator causes an asymptote.

You do not need to understand indeterminate values for this course. You only need to recognize that indeterminate values will cause points of discontinuity to appear on the graph of a rational function.

Self-Check 1

In Try This 3 you may have noticed that an x-intercept occurs when a factor that only occurs in the numerator is equal to 0. This is because this makes the entire numerator 0, and, therefore, the function 0.

Connect

Lesson 2 Assignment

Lesson 2 Summary

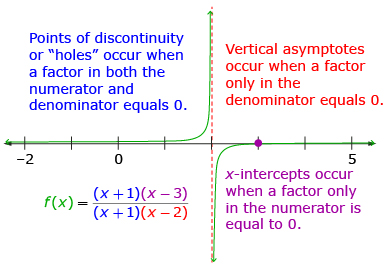

In this lesson you explored what happens on the graph of a rational function when it has a factor equal to 0 that occurs only in the numerator, only in the denominator, and in both the numerator and the denominator. If the 0 is only in the numerator, an x-intercept occurs. If the 0 is only in the denominator, an asymptote occurs. If the 0 shows up in both the numerator and denominator, a point of discontinuity occurs.

In the next lesson you will explore how the characteristics of a rational function can be used to sketch the function’s graph.
