Lesson 2

Explore

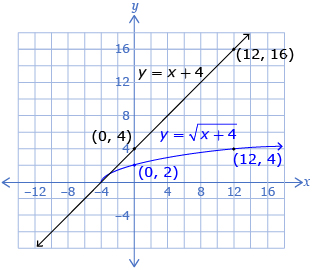

In Try This 1 you compared the graphs of y = x + 4 and You may have noticed that the mapping  shows the correspondence between points on the first graph and those points on the second graph.



What other patterns do you see when you compare the original function y = x + 4 and the square root of the original function



In Try This 2 you will compare a given function to the square root of the given function.



Try This 2



Use Visualizing Square Root to compare a function f(x) and the square root of that function





Comparison 1 has been done for you as an example.



Comparison 1: Compare the functions f(x) = −x + 1 and



Step 1: Select the linear function in Visualizing Square Root.



Step 2: Use the sliders to set a to −1 and b to 1.



Step 3: Select the "Show Square Root" box and compare the two graphs. Record your observations in a table.



Solution



	f(x) = –x + 1
Domain	{x|x ∈ R}	{x|x ≤ 1, x ∈ R}
Range	{y|y ∈ R}	{y|y ≥ 0, y ∈ R}
Invariant Point(s)	(1, 0) and (0, 1)
Sketch/Image of Both Functions



Comparison 2: Compare the functions f(x) = 0.5x − 1 and

Step 1: Change a to 0.5 and b to −1.

Step 2: Record your observations in a table similar to the following one.



	f(x) = 0.5x − 1
Domain
Range
Invariant Point(s)
Sketch/Image of Both Functions



Comparison 3: Compare the functions f(x) = x2 − 1 and

Step 1: Change the function to quadratic.

Step 2: Change a to 1, h to 0, and k to −1.

Step 3: Record your observations in a table similar to the following one.



	f(x) = x2 − 1
Domain
Range
Invariant Point(s)
Sketch/Image of Both Functions



Comparison 4: Compare the functions f(x) = 3x2 + 4 and

Step 1: Change a to 3, h to 0, and k to 4.

Step 2: Record your observations in a similar table.



	f(x) = 3x2 + 4
Domain
Range
Invariant Point(s)
Sketch/Image of Both Functions

1. Look at the location of the invariant points. Is there a pattern? Why are the invariant points located where they are?
2. How do the domains compare? Why are there differences?
3. How do the ranges compare? Explain the differences.
4. Refer to the sketches of each comparison. What happens to the value of as the value of f(x) changes? Use the following table to summarize the common patterns you observed for all four comparisons.



   Value of f(x) (original graph)	When the y values are less than 0 (f(x) < 0)	When the y value is 0 (f(x) = 0)	When the y values are between 0 and 1 (0 < f(x) < 1)	When the y value is 1 (f(x) = 1)	When the y values are greater than 1 (f(x) > 1)
   Value of

Save your responses in your course folder.



Share 2



With a partner or group, discuss the following questions based on your graphs created in Try This 2:



Based on the patterns you identified in Try This 2, create a method you could use to graph the square root of any function.



If required, save a record of your discussion in your course folder.
